Modular Sectional Barges
What is a Modular Sectional Barge
A modular sectional barge is a floating platform made up of steel sections that connect to form a stable working surface on water. Each section is built to ISO container standards, which allows it to be transported easily by truck, rail, or shipping container without the need for special permits. Once on-site, the modules are joined using a pin-and-lock system that creates a solid, continuous deck capable of supporting a wide range of marine and construction operations. This design provides contractors with a reliable, flexible, and reusable solution for projects that require mobility, durability, and rapid setup.
Understanding the Modular Design
The modular sectional barge system is based on precision engineering and simplicity. Each module features reinforced frames, sealed bulkheads, and standardized connection points that allow sections to be securely joined end-to-end or side-by-side. When assembled, the combined units distribute weight evenly and provide consistent buoyancy, creating a level and secure platform on the water. Once deployed, accessories such as Dock and Hull Protection, Deck Access Solutions, Deck-Mounted Winch Solutions, Barge Walkway System can be added to improve safety and functionality. When a project is complete, the barge can be quickly dismantled, transported to another site, and reassembled, making it a cost-effective solution for repetitive or multi-location operations.
Why Choose Modular Barges Over Conventional Barges
Portability
Modular sections can be shipped by standard truck, rail, or container, eliminating the need for tow-only transport and enabling fast relocation anywhere in the world.
Reduced Costs
Standardized shipping and quick on-site assembly significantly lower mobilization and demobilization costs compared to conventional barge systems.
Flexibility
Each section can be added, removed, or reconfigured to suit different water conditions, load requirements, and project scales.
Durability
Built from marine-grade structural steel with corrosion-resistant coatings, these barges are designed for long-term service and repeated use across multiple projects.
Explore Product Range

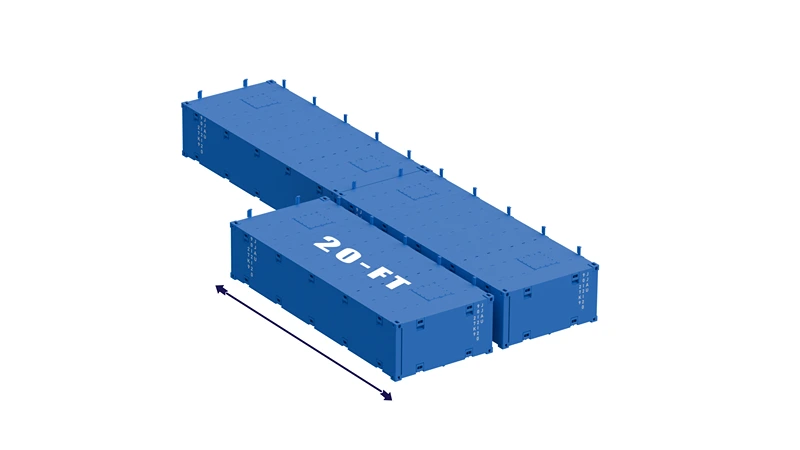

20×8×4 ft Modular Sectional Barge
Compact and versatile, the 20×8×4 ft modular sectional barge is designed for smaller marine and construction projects where agility and transport efficiency matter most. Built to ISO container standards, it can be shipped globally without special permits and assembled within hours. Ideal for temporary platforms, survey access, and support operations, it offers dependable stability and easy scalability when paired with additional sections.
Key Highlights:
Optimized for Smaller Projects
Perfect for survey work, maintenance dredging, and utility support.
ISO Container Compatible
Ships easily via standard freight or container systems worldwide.
Quick On-Water Assembly
Pin-and-lock system allows rapid setup with minimal equipment.
Durable Steel Construction
Marine-grade build ensures long service life in harsh environments.
Expandable Design
Can be joined with other sections to form larger floating platforms.
40×8×4 ft Modular Sectional Barge
Built for large-scale marine and industrial operations, the 40×8×4 ft modular sectional barge delivers unmatched stability, buoyancy, and load-bearing capacity. Its extended deck footprint accommodates heavy machinery, cranes, and multi-equipment setups—ideal for high-demand dredging, marine construction, and offshore maintenance projects. Despite its size, the patented ISO container design ensures simple transport and modular scalability across work sites.
Key Highlights:
Heavy-Duty Platform
Engineered for large equipment, multi-point anchoring, and long-duration operations.
Increased Deck Space
Expanded footprint supports high-capacity loads and equipment integration.
Patented ISO Container Build
Ships efficiently using standard freight systems for global projects.
Enhanced Stability
Optimized hull geometry ensures secure footing in variable marine conditions.
Modular Scalability
Connects seamlessly with 20×8×4 ft sections for custom floating configurations.
Dimensional Integration and Compatibility
Both barge types are built around the same 8 ft width and 4 ft depth standard, ensuring perfect lateral alignment. The difference lies in length (20 ft vs 40 ft), which is handled via modular couplings and pin connection points.
Standard Connection Interface
Each section, whether 20 ft or 40 ft, uses the same corner-cast and pin-lock pattern. This allows a 20 ft section to be joined to a 40 ft module end-to-end or side-by-side without modification.
Mixed Configuration Flexibility
You can link one 40 ft base with one or more 20 ft modules to extend deck space, add buoyancy, or create stepped or L-shaped platforms.
Load and Trim Management
When mixed, the 40 ft unit serves as the primary load-bearing section, while 20 ft sections are used for access platforms, light-equipment zones, or extensions.
Uniform Deck Height
Both sizes share identical deck thickness and freeboard, keeping the working surface level across joined modules.
Hydraulic and Utility Continuity
Built-in channels and tie-down points align across both sizes, simplifying hose routing, railing installation, and accessory mounting.
Global Support & Rentals
Wherever your project takes you, ModBarge delivers. Our global network ensures reliable access to modular sectional barges through flexible sales and rental options designed to fit your timeline and budget. From transport logistics to on-site assembly and system integration, our team provides end-to-end support to help you launch operations faster and more efficiently. Whether it’s a coastal dredging job or an inland construction site, ModBarge keeps your project moving with equipment that’s ready when and where you need it.
Deployment Scenarios
Floating Work Platforms
Serve as a stable, customizable base for cranes, excavators, winches, and other on-deck equipment. Ideal for heavy-duty construction, piling, and dredging tasks that require a steady working surface on water.
Pipeline and Equipment Support
Provide a secure platform for routing discharge lines, housing hydraulic power units, and positioning slurry pumps. The modular layout allows flexible hose management and quick reconfiguration during dredge operations.
Temporary Bridges and Access Decks
Link multiple barge sections to create temporary crossings for vehicles, personnel, or machinery between work zones. Quick assembly and modular scalability make them suitable for short-term or phased projects.
Material Handling and Storage
Offer high-capacity containment for aggregates, dredged material, and construction supplies. Reinforced deck surfaces allow safe stockpiling, loading, and transfer operations directly from waterborne platforms.
Survey and Inspection Platforms
Compact and maneuverable setup for hydrographic surveys, underwater inspections, or environmental monitoring. It can be outfitted with GPS systems, winches, and sensor equipment for precise field data collection.
Floating Pump or Power Stations
Serve as a floating base for electric, hydraulic, or diesel-driven pumps and control panels. Designed to handle vibration and load distribution efficiently during continuous operation.
Maintenance and Repair Bases
Provide a mobile, stable workspace for divers, technicians, and maintenance crews performing repairs on marine structures, vessels, or pipelines. Allows easy access to submerged assets without reliance on shore infrastructure.
Speak to an Engineer
- Free application analysis
- 30‑day performance guarantee
- Global support & service partners
Equip Your Modular Barge for Every Challenge
From towing & positioning to deck safety, ModBarge accessories enhance performance, reliability, and on-water efficiency. Configure a new platform or upgrade your existing setup with components built for demanding marine operations.
Contact ModBarge today to request a quote or explore global sales and rental options.
Frequently Asked Questions
What sizes of modular sectional barges are available?
ModBarge offers two standard sizes—20×8×4 ft and 40×8×4 ft. Both share a common ISO-compatible design, enabling them to connect seamlessly for custom floating configurations tailored to project scope and load requirements.
How are these barges transported?
Each section is built to ISO container dimensions, making transport simple via standard trucks, rail, or shipping containers. No oversized permits or escorts are required, reducing logistical costs and complexity.
How quickly can the barges be assembled on-site?
Assembly is straightforward; modules connect using a pin-and-lock system. A small crew can typically assemble a platform within a few hours, allowing operations to start the same day.
Can 20 ft and 40 ft sections be combined?
Yes. Both models share the same width and height, enabling full compatibility. Mixed configurations can be used to extend deck space, create access walkways, or build larger work platforms.
What materials are the barges made from?
Each section is fabricated from marine-grade structural steel and finished with a corrosion-resistant coating to withstand harsh marine conditions and extend service life.
Are the barges suitable for heavy equipment?
The 40×8×4 ft barge is built for heavy-duty machinery such as cranes, dredge pumps, and excavators. The 20×8×4 ft model is better suited for smaller-scale work such as access, support, and light equipment platforms.
Are the barges compliant with U.S. maritime laws?
What kind of accessories can be added to these barges?
A full range of ModBarge accessories—including Dock and Hull Protection, Deck Access Solutions, Deck-Mounted Winch Solutions, Barge Walkway System and dredge support gear—can be integrated for enhanced safety, control, and functionality.
Can ModBarge provide both sales and rental options?
Yes. Barges and accessories are available for purchase or short-term rental. Global shipping and project-specific configurations are supported through ModBarge’s logistics network.
What maintenance is required for long-term use?
Routine checks of pin connections, coatings, and anodes are recommended. With proper inspection and periodic repainting, the modular sections can provide reliable service for many years in demanding marine conditions.
Global Sales & Rentals
At ModBarge, we offer barge sections for sale and provide barge rental worldwide, supported by:
- Fast shipping via containerized freight.
- On-site assembly support and training.
- Flexible rental terms for short- or long-term projects.
